Modum Fire Escape Ladder

The Modum ladder is made of anodized aluminum profiles and is equipped for wall fastening adjacent to a window or balcony. The ladder rungs are hidden inside the profiles. The ladder looks like a downspout or a 3″ x 2″ wide vertical bar on a wall. Release pins (usually at each story) can be positioned to suit the egress location, independent of standard [adder lengths.

When required the release pin is pulled and the ladder unfolds, under its own weight, down to the ground. For high buildings more ladder sections are bolted together to attain the required height. The MODUM ladder also has a offset section for roof-eaves and buttresses.

Contact Us Now!

”It's an investment for life - your life!

Modum Team

Looking for technical specifications on different types of Modum Ladder Applications. Click below to download our “Modum Ladder Applications” technical specs.

Modum Ladder Applications

High Quality and Durability

  • Vertical stiles are extruded aluminum sections made from 6063-T6 aluminum alloy. All fasteners and pins are stainless steel.
  • Ladder rungs are square aluminum tubes with an anti-slip step surface formed from 6063-T6 aluminum alloy.
  • Mounting brackets for flush or offset mounting, masonry and stud wall fastening are available in aluminum with stainless steel hardware.
A tall emergency ladder on a structure

Easy to use

  • It can only be released from the top floor or at each intermediate floor with the release pin at each egress station.
  • A key activated ground level locking system is available for ground accessibility and security and will not impede the release procedure from above.
  • Access ladder only for ground level release only can be opened with a release pin or with a shackle lock for security purposes.
Modum ladder instructions on how to use

Simple installation

  • Wall mounting brackets are located every three to four feet apart depending on the ladder length, Extension brackets are available up to nine inches, and eleven inches.
  • Normal mounting, positions the bottom ladder rung about twenty inches above ground level. Ground level contact of the outer stile when open is permissible, say for inside use if desired.
A fire escape ladder on an apartment building

Load Rating

  • The Modum ladder is used as a supplementary means of egress to a height of 30 feet
  • Horizontal rung capacity equals 450 pounds of force
A lady climbing down an emergency fire escape ladder

Safety

  • The above-ground (20 inches) mounting of the MODUM ladder means the outer stile does not need ground support in the open position. Therefore the unit can open even if there is a snow/ice build-up, debris or other obstruction on the ground.
  • Luminescent signs are provided at each egress station to identify with picture instruction the fire escape ladder and the safety belt procedure.
  • The safety belt is attached to a glider lock which, in a simple manipulation, is fastened to the outer stile of the ladder. Under normal decent the glider lock will follow downwards or, in the case of ground access, the safety belt can be used to climb up. if a person looses their foothold or slips the glider will lock itself to the outer stile and prevent the fall.
  • A harness for the handicap or disabled is also available.
  • Decal instructions on the ladder’s use and safety are located on the ladder at each egress station.

Test and Code Approval

  • Tested and listed by NS-EN131 for use as a supplementary means of egress up to 30 ft. All tests, including those of four other test labs were conducted with the ladder to open above the ground level for maximum safety to open operation and load-carrying capacity.
A man installing a modum ladder

Extra Features

  • Safety belt and handicap harness
  • Step platforms and wall handles
  • Stile color painting or color anodizing, factory furnished
  • Key activated ground level locking system
Instructions on how to use a Modum ladder

Custom Color Match

For an extra charge Modum will create a color to match your requirement. For your color application please send us a color chip or sample and we can match it.
Modum ladders in different colors

Dimensions

  • In folded mode – 3 X 2 inches
  • Unfolded Mode – 15.7 X 2 inches
  • Distance between steps – 11.8 inches
  • Distance between legs – 12.4 inches
  • Standard Lengths: 82.67 – 106.2 – 129.92 – 141.73 – 153.54 – 166.35 – 177.16 – 188.97 – 200.8 – 212.59 inches

Contact Us

Please contact Modum International of Illinois, Inc., P.O. Box 85, Wasco, Illinois 60183, by email modumladder@yahoo.com, by phone at 630-365-9766,  fax 630-365-9767, or by visiting our Contact Us page.

It's an investment for life - your life!

Contact us for more information. Request a FREE quote

Contact Us Now!
A side view of aa commercial building with emergency fire escape ladder
A fire escape ladder by Modum on an apartment building
A boy climbing down a Modum emergency fire escape ladder
A Modum emergency escape ladder on a residential home
A fire escape ladder on a residential home
A fire escape ladder by Modum on a residential home
Modum ladder next to a window
A child climbing down a emergency escape ladder
A emergency escape ladder attached to a home
A emergency escape ladder reaching the top of a home
A young man unfolding a emergency escape ladder
A young man looking out a window next to a escape ladder
A woman climbing down a emergency escape ladder
A woman climbing down a fire escape ladder
A side view of a building with emergency fire escape ladder
A side view of an apartment building with emergency fire escape ladder
A house with a emergency fire escape ladder
A side view of a house with emergency fire escape ladder
An apartment building with a emergency fire escape ladder

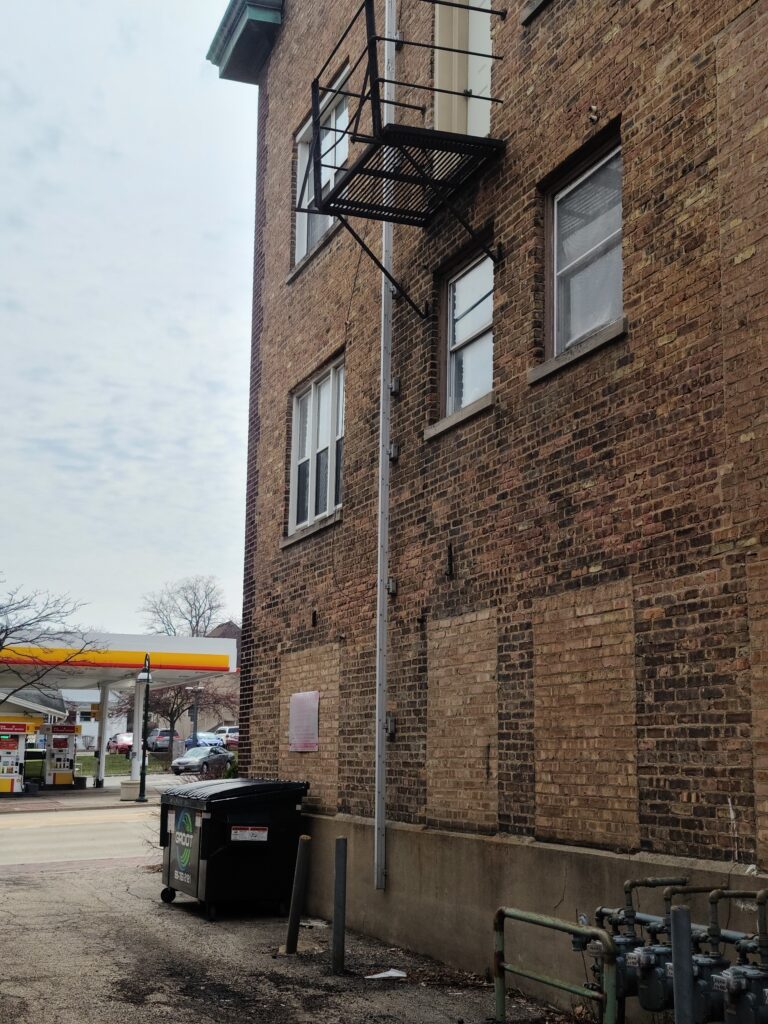

A side view of an apartment building with emergency fire escape ladder
